RobusBrew RT-4000

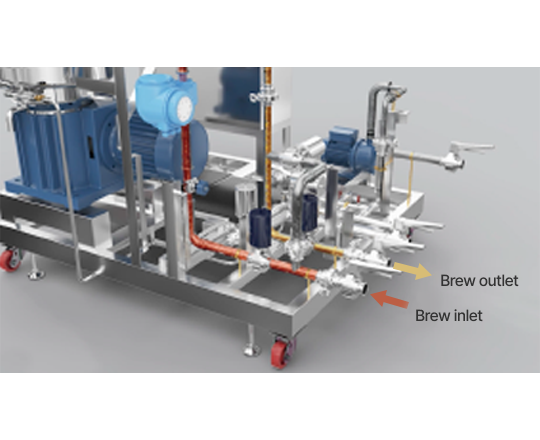

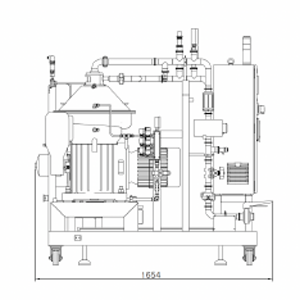

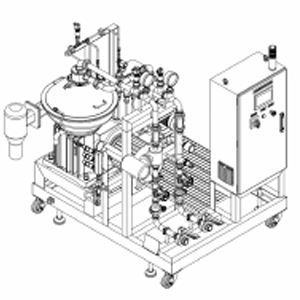

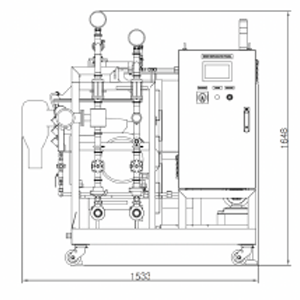

1. 제품 형상

2. 제품 사양

  • General
  • Feed brew Temparature : 0℃ ~ 10℃
  • Ambient Temparature : 0℃ ~ 30℃
  • brew Outlet delivery head : Max. 2.5bar
  • Main supply voltage : 380V or as customer’s requirement
  • Control voltage : DC24V
  • Brew Separator(원심분리기)
  • Speed : 10000rpm
  • Treating capacity : Max. 4000L/H
  • bowl weigth : 65kg
  • Material
  • - Upper frame : Stainless Steel
  • - Lower frame : cast Iron
  • - Vertical Shaft : Special Alloy Steel
  • - H. Shaft : Carbon Steel
  • - Bowl : Special Stainless Steel
  • Motor
  • Type : Totally Enclosed Fan Cooled
  • Power : AC380V, 60Hz, 3Φ
  • Output : 7.5kW
  • Enclosure : IP55
  • Insulation : F-class
  • Speed : 1775 RPM
  • Remarks : Horizontal Flange Mounting Type
  • Water Pump
  • Type : Air diaphragm type
  • Capacity : Max. 2000L/H
  • Control Panel
  • Type : Wall Mounting Type, Indoor Use
  • Enclosure : IP4
  • Feed pump(Option)
  • Capacity : Max. 5000L/H
  • Head : Delivery 25m
  • Remark : Separated type with invertor

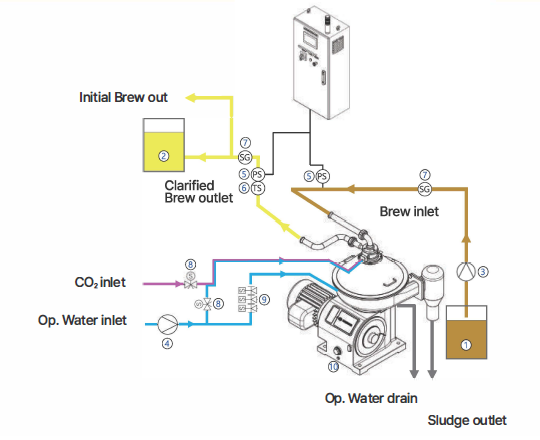

3. 구성과 동작 순서

  • 1 Brew setting tank
  • 2 Cleaned brew tank
  • 3 Feed pump (option)
  • 4 Water pump
  • 5 Pressure sensor
  • 6 Turbidity sensor
  • 7 Sight glass
  • 8 2-way solenoid valve
  • 9 Operating water solenoid unit
  • 10 Brew separator

4. 납품실적

주식회사 에잇피플브루어리

주식회사 브루원
