- Pressure ranges: -0.2 to 400 bar

- Low differential (fixed) micro switch

- Resistant to shock and vibrations

- Enclosure IP65

- Diaphragm version for applications with pulsations/pressure peaks

- Compact design

- Low installations costs

- Fast and easy to operate

- Easy to mount on block test valve

- Available as differential pressure switch

Danfoss MBC 5000, Block-type compact pressure switches are used in marine applications where space and reliability are the most important features. MBCs are compact pressure switches, designed according to our new block design to survive in the harsh conditions known from machine rooms onboard ships. MBCs have high vibration resistance and feature all commonly marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC pressure switches.

The MBC 5000 has the following features for the benefit of your application :

- Mechanical Lifetime > 1 Mill. cycles

- Media temperature down to -40°C (piston type)

- Piston or diaphragm based design

- High vibration stability

- High switch point accuracy by repeating cycles

- Optimal compact design for machine building purposes

- Designed for use in severe industrial environments

- Mechanical Lifetime > 1 Mill. cycles

- Media temperature down to -40°C (piston type)

- Piston or diaphragm based design

- High vibration stability

- High switch point accuracy by repeating cycles

- Optimal compact design for machine building purposes

- Designed for use in severe industrial environments

Typical applications

- Pressure control on hydraulic power packs

- Pressure control on hydraulic cylinders

- Alarm indication and shut-down

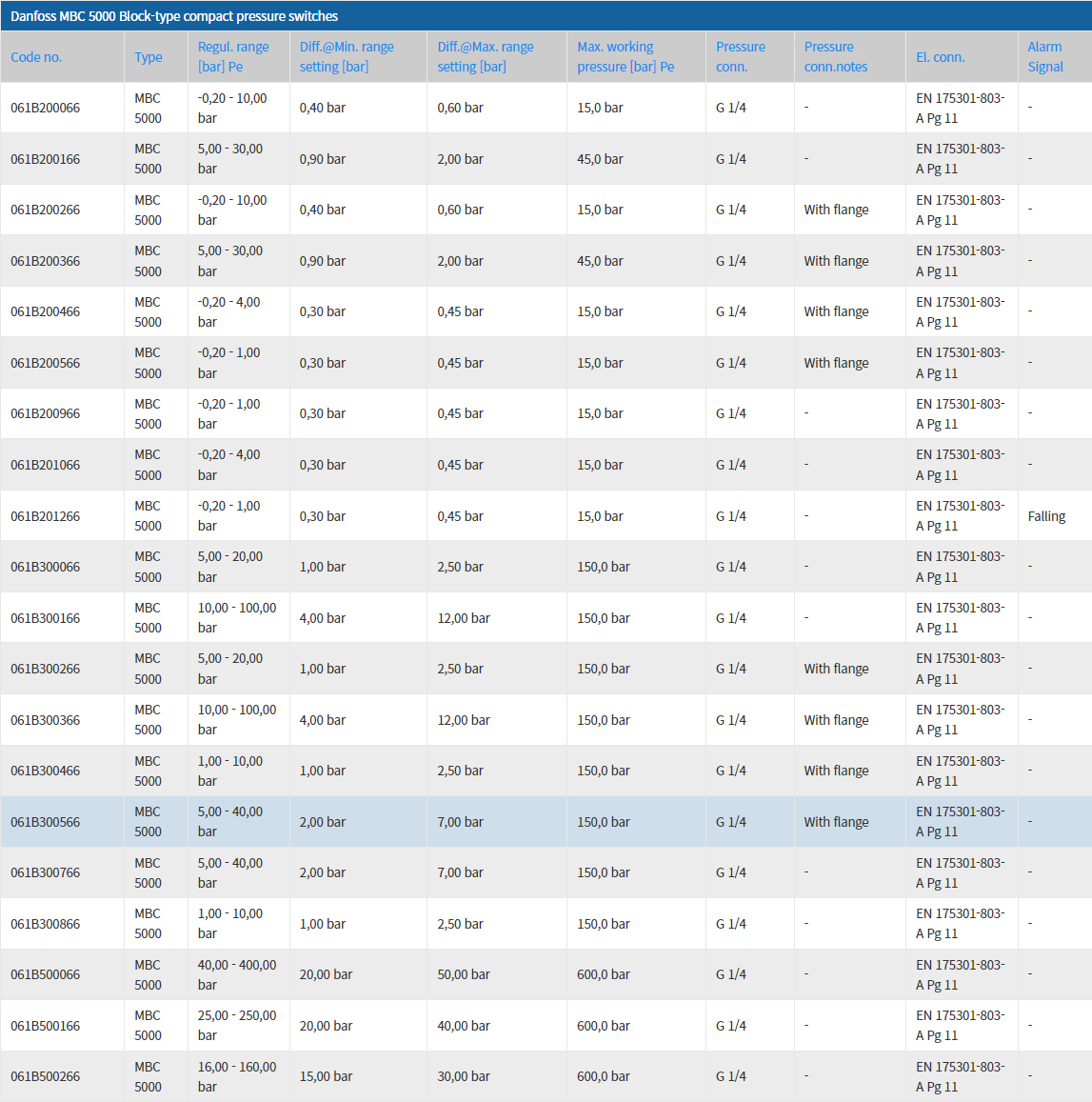

Specifications

Pressure ranges: 5 - 30 bar / 5 - 40 bar / 10 - 100 bar / 16 -160 bar / 25 - 250 bar / 40 - 400 bar

Ambient temperature : -40 to 85° C (Diaphragm version -10°C)

Enclosure: IP65

Plugs : PG9/PG11/PG13,5

Vibration stability: IEC 68-2-6

Approvals

CCC-China Cumpulsory Certification Pressure switch, MBC

Danfoss-foss - EU Declaration Pressure controller, MBC

Danfoss-foss - EU Declaration Thermostat, MBC
