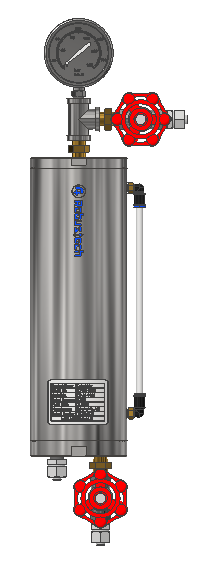

Separates entrained gas bubbles from liquid, vents the gas, and supplies debubbled liquid to the downstream process. Designed for gas-liquid separation; it does not remove oil or other liquid contaminants.
Highlights
-
Gas-liquid separation through reduced flow velocity and residence time
-
Bubble discharge through the upper air vent
-
Pressure and level gauge monitoring
-
Operating pressure: 0.8–1.2 bar
-
Does not separate oil or other liquid contaminants
Product information
|
Product name
|
Debubbler
|
|
Model
|
RT-DB-2000
|
|
Rated pressure
|
0.08–0.12 MPa / 0.8–1.2 bar / 0.82–1.22 kgf/cm²
|
|
Operating flow
|
0.01–0.5 L/min
|
|
Operating temperature
|
0–50 °C
|
|
Dimensions
|
Φ90 × 260L
|
|
Patent
|
No. 10-2210225
|
|
Product name
|
Debubbler
|
|
Model
|
RT-DB-2000
|
|
Rated pressure
|
0.08–0.12 MPa / 0.8–1.2 bar / 0.82–1.22 kgf/cm²
|
|
Operating flow
|
0.01–0.5 L/min
|
|
Operating temperature
|
0–50 °C
|
|
Dimensions
|
Φ90 × 260L
|
|
Patent
|
No. 10-2210225
|
Function and operating notes
|
Function
|
Separates entrained gas bubbles from liquid and vents the gas
|
|
Installation
|
Install vertically with the air vent facing upward
|
|
Operation
|
Adjust the outlet valve to maintain 0.8–1.2 bar
|
|
Limitation
|
Does not remove oil or other liquid contaminants
|
|
Function
|
Separates entrained gas bubbles from liquid and vents the gas
|
|
Installation
|
Install vertically with the air vent facing upward
|
|
Operation
|
Adjust the outlet valve to maintain 0.8–1.2 bar
|
|
Limitation
|
Does not remove oil or other liquid contaminants
|
Support
|
Supply
|
Robustech Co., Ltd.
|
|
Tel.
|
+82-55-314-7748
|
|
Supply
|
Robustech Co., Ltd.
|
|
Tel.
|
+82-55-314-7748
|
|
Web
|
robustech.co.kr
|
